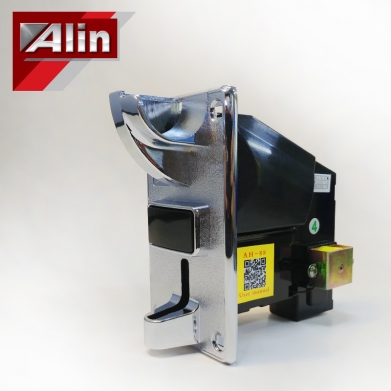

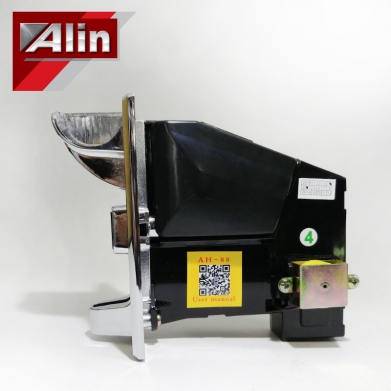

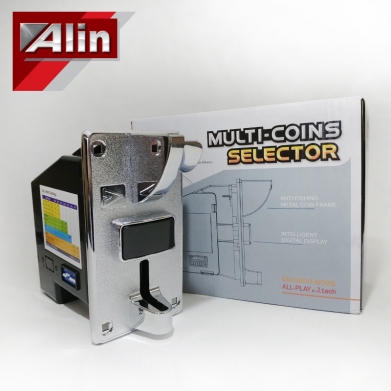

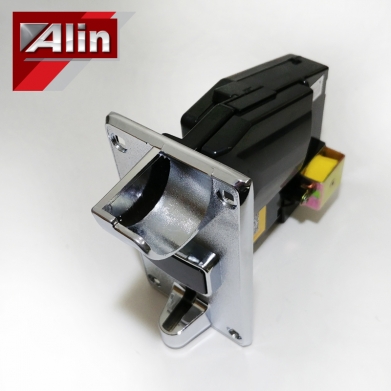

Anti-fishing Multi Coins Selector Coins Acceptor

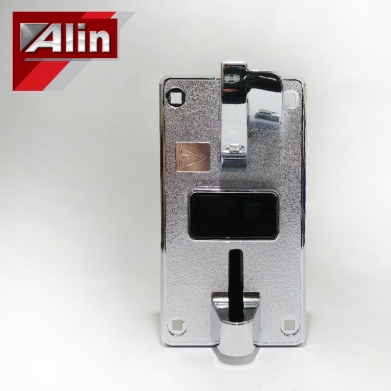

Anti-fishing Metal Coin Frame!
Intelligent Digital Display!
------------------------------------------------------------------------------------------------------------
Instruction for position and directions for use of AH-88 type Coin Selector:
| No. |
Name |
Fuction |
| 1 |
Setting switch |
select different kinds of coin and numerical value |
| 2 |
4pin Socket |
-
1--12V(RED)
-
2----COIN(WHITE)
-
3-------GND(BLACK)
-
4----------COUNTER
|
| 3 |
Forbidden Socket |
Forbidden signal DC5V~DC12V |
| 4 |
RS232 |
|
| 5.7 |
Micro button |
Condition display numerical value increase “+”“—” |
| 8 |

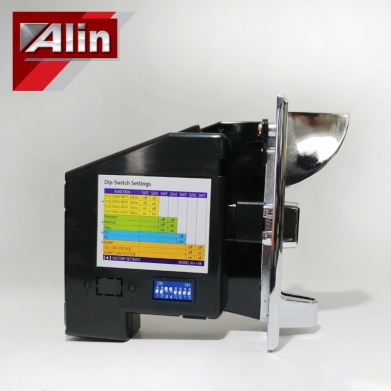

DIP SWITCH |
Functional Adjustment |
| 11 |
Press-button for removal of coin blocked |
Error Code Display
Coin counter display
|
| Voltage |
DC12V±10% |
| Weight |
About 480g |
| Working temperature |
-15°C~75°C |
| Coin diameter |
12 mm-30 mm |
| Coin thickness |
1.2 mm-3.5 mm |
| Identify Speed |
≤ 0.3s |
| Quiescent current |
50 mA |
| Working current |
500 Ma |
|
ACCESSORIES
